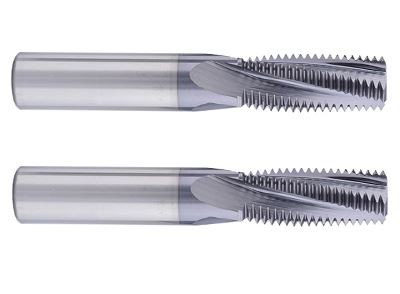

Product Name: Solid Carbide Full Teeth Metric Thread End Milling Cutters
Model Number: M3-M24
Specifications:
Main Features:
Made of all new super micro grain tungsten carbide material, high hardness and high durable.
1. The cost is lower. Although a single thread milling cutter is more expensive than a tap, the cost of a single threaded hole is lower than that of a tap.
2. Higher precision. The thread milling cutter achieves precision with tool compensation, and customers can choose the thread precision they need at will.
3. The finish is good, and the teeth milled by the thread milling cutter are more beautiful than those of taps.
4. Long service life, the service life of the thread milling cutter is more than ten times or even dozens of times that of the tap, reducing the time for tool change and machine adjustment.
5. If the tap is broken, the workpiece may be scrapped. Even if the thread milling cutter is broken manually, it is easy to take out, and the workpiece will not be scrapped.
6. The processing efficiency of thread milling cutter is much higher than that of thread tapping.
7. The blind hole thread milling cutter can mill to the bottom, but the thread tapping cannot.
8. For some materials, the thread milling cutter can drill holes. Iron teeth. Chamfering is formed at one time, and tapping is not acceptable.
9. A thread milling cutter can process internal and external threads with different rotation directions, but a tap cannot.
10. For threaded holes with the same pitch and different sizes, several taps need to be replaced, and thread milling cutters can be used universally.
11. If the threaded hole is not outdated for the first time, the thread milling cutter can be corrected by tool compensation, but the thread tapping cannot, and the workpiece can only be scrapped.
12. When processing larger threaded holes, the tapping efficiency is low, and the thread milling cutter can realize it instantaneously.
13. The thread milling cutter cuts into powdery short chips, and there is no possibility of entanglement. The thread tapping process is helical iron filings, which is easy to entangle the tool.
14. The thread milling cutter is not full-tooth contact cutting, and the load and cutting force of the machine tool are smaller than that of the tap.
15. The clamping is simple, the tap needs a flexible tapping tool holder, and the thread milling cutter can use ER.HSK. Hydraulic and thermal expansion and other tool holders.
16. When processing high-hardness threads, the taps are severely worn, and even cannot be processed. Thread milling cutters can be easily purchased.
