Cast Iron Carbide Cutting Tools

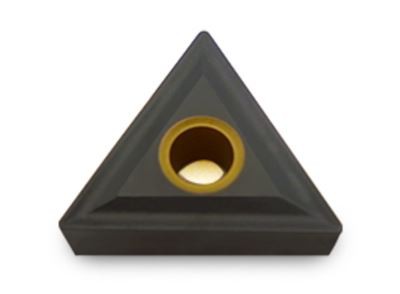

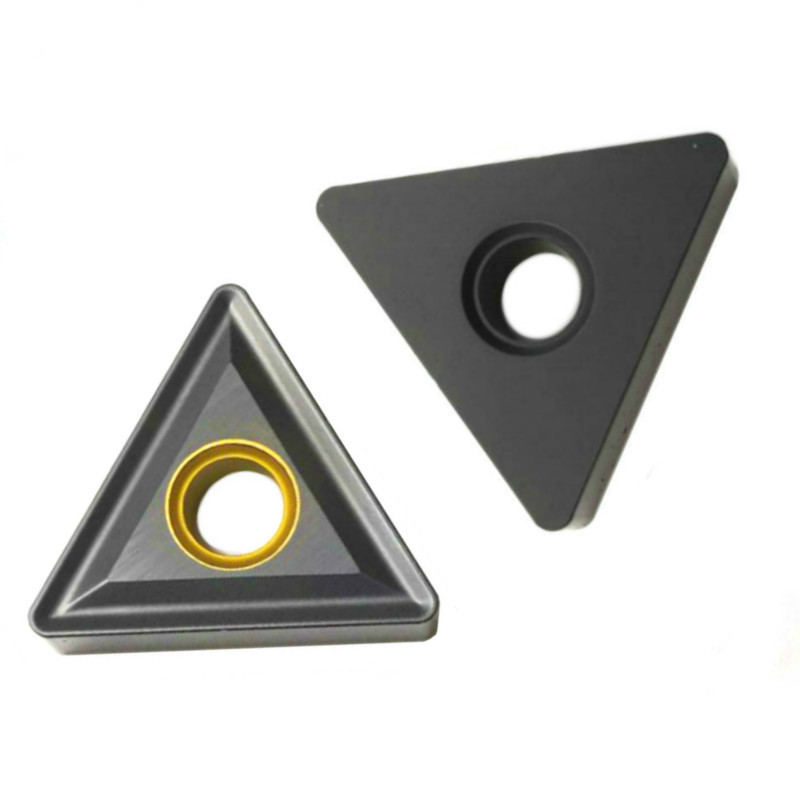

Product Name: TNMG160404 160408 160412 Cast Iron Carbide Cutting Tools

Model Number: TNMG160404 160408 160412

Product Parameters:

1. Brand name: Tantivy, or OEM

2. Raw material: Tungsten carbide

3. Hardness: 92HRC

4. Type: External turning inserts, Triangle shape

5. Coating: PVD coating

6 Minimum Order Quantity(MOQ): 10pcs/1 box

7. Controlling mode: Turning machine, CNC lathe

8. Work material: Cast iron, Pig iron, Gray cast iron

Main Features:

Cast iron is a widely used metal material in the processing of pump equipment. The development of cast iron is also very fast. Not only the variety has increased, but its performance has also been significantly improved. In terms of its metallographic structure, cast iron can be divided into gray cast iron, ductile cast iron, malleable cast iron and white cast iron. Their main difference is the existence form and distribution state of carbon. The first three types of carbon all exist in the form of graphite or a small part of carbon body, with low strength and low hardness, and good cutting performance. White iron is chilled cast iron obtained by chilling method. Most or all of its carbon exists in the form of cementite, which is hard and brittle, and is a difficult-to-cut material.

Models & Grade:
