Product Name: TiN Coated HSS Straight Shank Twisted Drill Bits
Model Number: THDB
Product Parameters:
1. Brand name: Tantivy, or OEM
2. Grade: M2, M35
3. Raw material: High speed steel
4. Standard: DIN338
5. Type: Twisted drill bits, HSS drill bits
6. Flute: 2 Flute
7. Tip angle: 118°
8. Diameter: 1.0-20.0mm
9. Overall Length: 34-205mm
10. Coating/Coverage: TiN coated
11. Overall Length Tolerance: +-0.20mm
12. HRC: for 45HRC-55HRC work material
13. Controlling mode: CNC, Drilling Machines, Electric drill
14. Work material: Cast iron, Steel, Alloy, Stainless steel
Main Features:
Made of high durable and strength high speed steel, M2 and M35 for choices, very high cost-performance, Tin coating will increase the too life. Suitable for different metals drilling such as steel, cast iron, alloy steel, stainless steel, also it can reduce the times of tool changes and shaking in the processing, save production time and improve efficiency.
Specifications:
|
Part Number |
Dia/mm |
Shank/mm |
Flute Length/mm |
Overall Length/mm |
Flute |
|
THDB001 |
1 |
1 |
12 |
34 |
2 |
|
THDB015 |
1.5 |
1.5 |
18 |
40 |
2 |
|
THDB002 |
2 |
2 |
24 |
49 |
2 |
|
THDB025 |
2.5 |
2.5 |
30 |
57 |
2 |
|
THDB003 |
3 |
3 |
33 |
61 |
2 |
|
THDB032 |
3.2 |
3.2 |
36 |
65 |
2 |
|
THDB035 |
3.5 |
3.5 |
39 |
65 |
2 |
|
THDB040 |
4 |
4 |
43 |
70 |
2 |
|
THDB042 |
4.2 |
4.2 |
43 |
75 |
2 |
|
THDB045 |
4.5 |
4.5 |
47 |
75 |
2 |
|
THDB050 |
5 |
5 |
52 |
86 |
2 |
|
THDB052 |
5.2 |
5.2 |
52 |
86 |
2 |
|
THDB055 |
5.5 |
5.5 |
57 |
86 |
2 |
|
THDB060 |
6 |
6 |
57 |
93 |
2 |
|
THDB065 |
6.5 |
6.5 |
63 |
93 |
2 |
|
THDB070 |
7 |
7 |
69 |
101 |
2 |
|
THDB075 |
7.5 |
7.5 |
69 |
109 |
2 |
|
THDB080 |
8 |
8 |
75 |
117 |
2 |
|
THDB085 |
8.5 |
8.5 |
75 |
117 |
2 |
|
THDB090 |
9 |
9 |
81 |
125 |
2 |
|
THDB095 |
9.5 |
9.5 |
81 |
125 |
2 |
|
THDB100 |
10 |
10 |
87 |
133 |
2 |
|
THDB105 |
10.5 |
10.5 |
87 |
133 |
2 |
|
THDB110 |
11 |
11 |
94 |
142 |
2 |
|
THDB115 |
11.5 |
11.5 |
94 |
142 |
2 |
|
THDB120 |
12 |
12 |
101 |
151 |
2 |
|
THDB125 |
12.5 |
12.5 |
101 |
151 |
2 |
|
THDB130 |
13 |
13 |
101 |
151 |
2 |
|
THDB135 |
13.5 |
13.5 |
108 |
160 |
2 |
|
THDB140 |
14 |
14 |
108 |
160 |
2 |
|
THDB145 |
14.5 |
14.5 |
114 |
169 |
2 |
|
THDB150 |
15 |
15 |
114 |
169 |
2 |
|
THDB155 |
15.5 |
15.5 |
120 |
178 |
2 |
|
THDB160 |
16 |
16 |
120 |
178 |
2 |
|
THDB165 |
16.5 |
16.5 |
125 |
184 |
2 |
|
THDB170 |
17 |
17 |
125 |
184 |
2 |
|
THDB175 |
17.5 |
17.5 |
130 |
191 |
2 |
|
THDB180 |
18 |
18 |
130 |
191 |
2 |
|
THDB185 |
18.5 |
18.5 |
135 |
198 |
2 |
|
THDB190 |
19 |
19 |
135 |
198 |
2 |
|
THDB195 |
19.5 |
19.5 |
140 |
205 |
2 |
|
THDB200 |
20 |
20 |
140 |
205 |
2 |

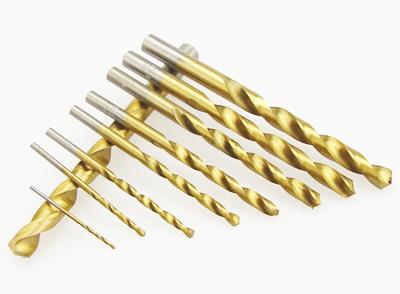

100% Real Shot Photos:
