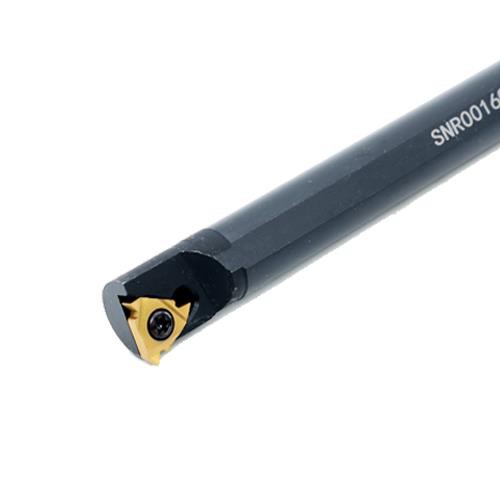

Product Name: WAT SNR SNL Internal Threading Turning Tool Holders
Model Number: SNR/SNL
Product Parameters:
1. Brand name: Tantivy, or OEM
2. Raw material: High speed steel
3. Type: Internal threading tool holder, SNR/L threading tool holders
4. Hardness: 62HRC
5. Diameter: 12mm-40mm
6. Overall length: 32-400mm
7. Color: Black color
8. Insert: 11NR/L--, 16NR/L--, 22NR/L--
9. HRC: for 45HRC to 55HRC work material
10. Controlling mode: CNC lathe, Turning machine
11. Work material: Copper, Alloy steel, Tool steel, Carbon steel, Cast Iron, Mold steel, Stainless steel
Main Features:
Body is made of high speed steel, matching tungsten carbide inserts, mainly for high speed internal threading on different metals less than 55HRC, also it can reduce the times of tool changes and shaking in the processing, save production time and improve efficiency.
Specifications:
|
MODELS |
AVAILABLE INSERTS |
SIZE/MM |
PARTS |
||||||||
|
SCREW |
SHIM |
WRENCH |
|||||||||
|
D MIN |
D |
F |
L1 |
L2 |
H |
K |
|||||
|
SNR/L0008K11 |
11NR/L---- |
10 |
8 |
6.4 |
125 |
20 |
7 |
21° |
M2.5X6 |
X |
T-8 |
|
SNR/L0010K11 |
12 |
10 |
7.4 |
125 |
25 |
9 |
21° |
||||
|
SNR/L0012K11 |
15 |
12 |
8.4 |
125 |
32.5 |
11 |
15° |
||||
|
SNR/L0010K11-A16 |
12 |
16 |
7.4 |
125 |
30 |
15 |
15° |
||||
|
SNR/L0012K11-A16 |
15 |
16 |
8.4 |
125 |
36 |
15 |
15° |
||||
|
SNR/L0013M16 |
16NR/L---- |
16 |
16 |
10.2 |
150 |
32 |
15 |
17° |
M3.5X9 |
STM16R/L |
T-15 |
|
SNR/L0016M16 |
19 |
16 |
11.7 |
150 |
40 |
15 |
15° |
||||
|
SNR/L0020Q16 |
24 |
20 |
13.7 |
180 |
40 |
19 |
21° |
||||
|
SNR/L0020R16 |
24 |
20 |
13.7 |
200 |
40 |
19 |
21° |
||||
|
SNR/L0025R16 |
29 |
25 |
16.2 |
200 |
45 |
24 |
21° |
||||
|
SNR/L0032S16 |
36 |
32 |
19.7 |
250 |
50 |
30 |
15° |
||||
|
SNR/L0040T16 |
44 |
40 |
23.7 |
300 |
55 |
38 |
15° |
||||
|
SNR/L0050U16 |
54 |
50 |
28.7 |
350 |
60 |
48 |
15° |
||||
|
SNR/L0020Q22 |
22NR/L---- |
23 |
20 |
15.6 |
180 |
45 |
19 |
15° |
M4x10 |
STM22R/L |
T-20 |
|
SNR/L0025R22 |
29 |
25 |
18.1 |
200 |
47 |
24 |
21° |
||||
|
SNR/L0032S22 |
38 |
32 |
21.6 |
250 |
55 |
30 |
15° |
||||
|
SNR/L0040T22 |
46 |
40 |
25.6 |
300 |
60 |
38 |
15° |
||||
|
SNR/L0050U22 |
56 |
50 |
30.6 |
350 |
70 |
48 |
15° |
||||
