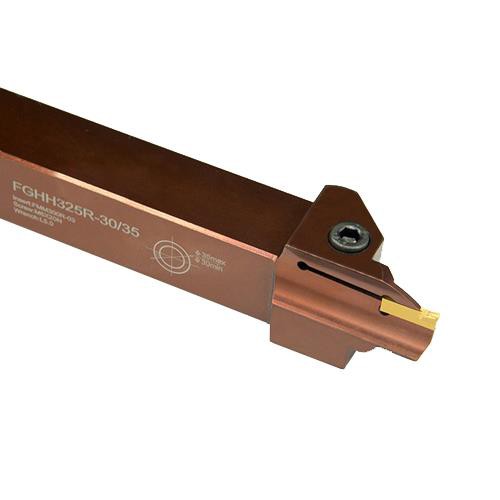

Product Name: Spring Steel FGHH MGHH End Face Grooving Tool Holders
Model Number: FGHH MGHH Type
Product Parameters:
1. Brand name: Tantivy, or OEM
2. Raw material: spring steel
3. Type: Face grooving tool holder, FGHH face grooving tool holders
4. Hardness: 62HRC
5. Diameter: 16mm-40mm
6. Overall length: 60-200mm
7. Color: Black color
8. Insert: FMM, FGD, FGM, MGMN
9. HRC: for 45HRC to 55HRC work material
10. Controlling mode: CNC lathe, Turning machine
11. Work material: Copper, Alloy steel, Tool steel, Carbon steel, Cast Iron, Mold steel, Stainless steel
Main Features:
Body is made of spring steel, matching tungsten carbide inserts, mainly for high speed face grooving on different metals less than 55HRC, also it can reduce the times of tool changes and shaking in the processing, save production time and improve efficiency.
Specifications:
|
Models |
H |
W |
L |
S |
T-max |
Min |
Max |
Inserts |
|
FGHH/FGVH 320R-25/30 |
20 |
20 |
125 |
20.6 |
12 |
25 |
30 |
FMM300R-03 (3mm) |
|
FGHH/FGVH 320R-30/35 |
20 |
20 |
125 |
20.6 |
12 |
30 |
35 |
|
|
FGHH/FGVH 320R-35/48 |
20 |
20 |
125 |
20.6 |
12 |
35 |
48 |
|
|
FGHH/FGVH 325R-25/30 |
25 |
25 |
150 |
25.6 |
12 |
25 |
30 |
|
|
FGHH/FGVH 325R-30/35 |
25 |
25 |
150 |
25.6 |
12 |
30 |
35 |
|
|
FGHH/FGVH 325R-35/48 |
25 |
25 |
150 |
25.6 |
12 |
35 |
48 |
|
|
FGHH/FGVH 325R-48/60 |
25 |
25 |
150 |
25.6 |
22 |
48 |
60 |
FGD300R-03 (3mm) |
|
FGHH/FGVH 325R-60/75 |
25 |
25 |
150 |
25.6 |
22 |
60 |
75 |
|
|
FGHH/FGVH 325R-75/100 |
25 |
25 |
150 |
25.6 |
22 |
75 |
100 |
|
|
FGHH/FGVH 325R-100/140 |
25 |
25 |
150 |
25.6 |
22 |
100 |
140 |
|
|
FGHH/FGVH 420R-25/30 |
20 |
20 |
125 |
20.6 |
12 |
25 |
30 |
FMM400R-04 (4mm) |
|
FGHH/FGVH 420R-30/35 |
20 |
20 |
125 |
20.6 |
12 |
30 |
35 |
|
|
FGHH/FGVH 420R-35/48 |
20 |
20 |
125 |
20.6 |
12 |
35 |
48 |
|
|
FGHH/FGVH 425R-25/30 |
25 |
25 |
150 |
25.6 |
12 |
25 |
30 |
|
|
FGHH/FGVH 425R-30/35 |
25 |
25 |
150 |
25.6 |
12 |
30 |
35 |
|
|
FGHH/FGVH 425R-35/48 |
25 |
25 |
150 |
25.6 |
12 |
35 |
48 |
|
|
FGHH/FGVH 425R-48/60 |
25 |
25 |
150 |
25.6 |
25 |
48 |
60 |
FGD400R-04 (4mm) |
|
FGHH/FGVH 425R-60/75 |
25 |
25 |
150 |
25.6 |
25 |
60 |
75 |
|
|
FGHH/FGVH 425R-75/100 |
25 |
25 |
150 |
25.6 |
25 |
75 |
100 |
|
|
FGHH/FGVH 425R-100/140 |
25 |
25 |
150 |
25.6 |
25 |
100 |
140 |
|
|
FGHH/FGVH 520R-25/30 |
20 |
20 |
125 |
20.6 |
12 |
25 |
30 |
FMM500R-04 (5mm) |
|
FGHH/FGVH 520R-30/35 |
20 |
20 |
125 |
20.6 |
12 |
30 |
35 |
|
|
FGHH/FGVH 520R-35/40 |
20 |
20 |
125 |
20.6 |
20 |
35 |
40 |
|
|
FGHH/FGVH 520R-40/48 |
20 |
20 |
125 |
20.6 |
20 |
40 |
48 |
|
|
FGHH/FGVH 525R-25/30 |
25 |
25 |
150 |
25.6 |
12 |
25 |
30 |
|
|
FGHH/FGVH 525R-30/35 |
25 |
25 |
150 |
25.6 |
12 |
30 |
35 |
|
|
FGHH/FGVH 525R-35/40 |
25 |
25 |
150 |
25.6 |
20 |
35 |
40 |
|
|
FGHH/FGVH 525R-40/48 |
25 |
25 |
150 |
25.6 |
20 |
40 |
48 |
|
|
FGHH/FGVH 525R-48/60 |
25 |
25 |
150 |
25.6 |
25 |
48 |
60 |
FGD500R-04 (5mm) |
|
FGHH/FGVH 525R-60/75 |
25 |
25 |
150 |
25.6 |
25 |
60 |
75 |
|
|
FGHH/FGVH 525R-75/100 |
25 |
25 |
150 |
25.6 |
25 |
75 |
100 |
|
|
FGHH/FGVH 525R-100/140 |
25 |
25 |
150 |
25.6 |
25 |
100 |
140 |
