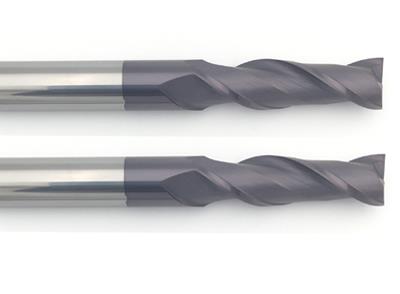

Product Name: TiAlN Coated 2 Flute Extra Long Carbide End Mills For Steel
Model Number: LSD-450/550
Product Parameters:
1. Brand name: Tantivy, or OEM
2. Raw material: 10X from ZCCT Carbide and WF25 from Taiwan CB carbide
3. Grain Size: Micro grain 0.6μ
4. Type: Long end mills, Extra long end mills
5. Flute: 2 Flute
6. Helix angle: 35°
7. Diameter: 1mm-25mm
8. Overall Length: 75-150mm
9. Coating/Coverage: AlTiN, TiAlN
10. Cobalt: 10%
11. HRC: for 45HRC to 55HRC work material
12. Controlling mode: CNC Milling Machines
13. Work material: Copper, Alloy steel, Tool steel, Carbon steel, Cast Iron, Mold steel, Stainless steel
Main Features:
Made of high hardness raw carbide material, high durable and strength, long flute and long shank for deep processing, very high cost-performance. Suitable for metal roughing and finishing less than 55HRC, also it can reduce the times of tool changes and shaking in the processing, save production time and improve efficiency.
Specifications:
|
Part Number |
Dia/mm |
Shank/mm |
Flute Length/mm |
Overall Length/mm |
Flute |
|
LSD04010075-450/550 |
1.0 |
4 |
5 |
75 |
2 |
|
LSD04015075-450/550 |
1.5 |
4 |
6 |
75 |
2 |
|
LSD04020075-450/550 |
2.0 |
4 |
9 |
75 |
2 |
|
LSD04025075-450/550 |
2.5 |
4 |
10 |
75 |
2 |
|
LSD04030075-450/550 |
3.0 |
4 |
10 |
75 |
2 |
|
LSD03030075-450/550 |
3.0 |
3 |
10 |
75 |
2 |
|
LSD04040075-450/550 |
4.0 |
4 |
20 |
75 |
2 |
|
LSD04040100-450/550 |
4.0 |
4 |
25 |
100 |
2 |
|
LSD06050075-450/550 |
5.0 |
6 |
25 |
75 |
2 |
|
LSD05050075-450/550 |
5.0 |
5 |
25 |
75 |
2 |
|
LSD06060075-450/550 |
6.0 |
6 |
25 |
75 |
2 |
|
LSD06060100-450/550 |
6.0 |
6 |
30 |
100 |
2 |
|
LSD06060150-450/550 |
6.0 |
6 |
35 |
150 |
2 |
|
LSD08080075-450/550 |
8.0 |
8 |
30 |
75 |
2 |
|
LSD08080100-450/550 |
8.0 |
8 |
35 |
100 |
2 |
|
LSD08080150-450/550 |
8.0 |
8 |
40 |
150 |
2 |
|
LSD10100100-450/550 |
10.0 |
10 |
40 |
100 |
2 |
|
LSD10100150-450/550 |
10.0 |
10 |
45 |
150 |
2 |
|
LSD12120100-450/550 |
12.0 |
12 |
45 |
100 |
2 |
|
LSD12120150-450/550 |
12.0 |
12 |
50 |
150 |
2 |
|
LSD14140150-450/550 |
14.0 |
14 |
50 |
150 |
2 |
|
LSD16160150-450/550 |
16.0 |
16 |
50 |
150 |
2 |
|
LSD18180150-450/550 |
18.0 |
18 |
50 |
150 |
2 |
|
LSD20200150-450/550 |
20.0 |
20 |
50 |
150 |
2 |
|
LSD22220150-450/550 |
22.0 |
22 |
50 |
150 |
2 |
|
LSD25250150-450/550 |
25.0 |
25 |
50 |
150 |
2 |
We are based in Guangdong, China, start from 2016,sell to Southeast Asia(25.00%),North America(20.00%),Western Europe(15.00%),Oceania(10.00%),South America(10.00%),Mid East(10.00%),Eastern Europe(5.00%),Africa(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Diamond end mill,pcd woodworking tools,pcd pcnd mcd end mill,pcd pcbn mcd inserts,carbide tools
4. why should you buy from us not from other suppliers?
Qiye Diamond Tools Co., Ltd. is an enterprise integrating R & D, production and sales. It is a professional manufacturer of precision diamond tools and tools.We can produce according to your drawings, so welcome OEM!
5. what services can we provide?
Accepted Delivery Terms: FOB;
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Russian
