Product Name: TiN Coated Small Carbide PCB Drill Bits
Model Number: PCBD-450-T
Product Parameters:
1. Brand name: Tantivy, or OEM
2. Raw material: 10X from ZCCT Carbide
3. Grain Size: Micro grain 0.6μ
4. Type: PCB drill bits, PCB drilling tools
5. Flute: 2 Flute
6. Helix angle: 30°
7. Diameter: 0.20-3.175
8. Overall Length: 38mm
9. Coating/Coverage: TiN coated
10. Overall Length Tolerance: +-0.20mm
11. HRC: for 45HRC work material
12. Controlling mode: CNC, Drilling Machines
13. Work material: PCB board
Main Features:
Made of high hardness raw carbide material, high durable and strength, very high cost-performance. Special for PCB board drilling, small diameters, Tin coating will have longer life, also it can reduce the times of tool changes and shaking in the processing, save production time and improve efficiency.
Specifications:
|
Part Number |
Dia/mm |
Shank/mm |
Flute Length/mm |
Overall Length/mm |
Flute |
|
PCBD0020-450-T |
0.2 |
3.175 |
4 |
38 |
2 |
|
PCBD0025-450-T |
0.25 |
3.175 |
4 |
38 |
2 |
|
PCBD0030-450-T |
0.3 |
3.175 |
5.5 |
38 |
2 |
|
PCBD0035-450-T |
0.35 |
3.175 |
5.5 |
38 |
2 |
|
PCBD0040-450-T |
0.4 |
3.175 |
7 |
38 |
2 |
|
PCBD0045-450-T |
0.45 |
3.175 |
7 |
38 |
2 |
|
PCBD0050-450-T |
0.5 |
3.175 |
8.5 |
38 |
2 |
|
PCBD0055-450-T |
0.55 |
3.175 |
8.5 |
38 |
2 |
|
PCBD0060-450-T |
0.6 |
3.175 |
8.5 |
38 |
2 |
|
PCBD0065-450-T |
0.65 |
3.175 |
8.5 |
38 |
2 |
|
PCBD0070-450-T |
0.70 |
3.175 |
9 |
38 |
2 |
|
PCBD0075-450-T |
0.75 |
3.175 |
9 |
38 |
2 |
|
PCBD0080-450-T |
0.80 |
3.175 |
10 |
38 |
2 |
|
PCBD0085-450-T |
0.85 |
3.175 |
10 |
38 |
2 |
|
PCBD0090-450-T |
0.90 |
3.175 |
10 |
38 |
2 |
|
PCBD0095-450-T |
0.95 |
3.175 |
10 |
38 |
2 |
|
PCBD0100-450-T |
1.00 |
3.175 |
10 |
38 |
2 |
|
PCBD0105-450-T |
1.05 |
3.175 |
10 |
38 |
2 |
|
PCBD0110-450-T |
1.10 |
3.175 |
10 |
38 |
2 |
|
PCBD0115-450-T |
1.15 |
3.175 |
10 |
38 |
2 |
|
PCBD0120-450-T |
1.20 |
3.175 |
10 |
38 |
2 |
|
PCBD0125-450-T |
1.25 |
3.175 |
10 |
38 |
2 |
|
PCBD0130-450-T |
1.30 |
3.175 |
10 |
38 |
2 |
|
PCBD0135-450-T |
1.35 |
3.175 |
10 |
38 |
2 |
|
PCBD0140-450-T |
1.40 |
3.175 |
10 |
38 |
2 |
|
PCBD0145-450-T |
1.45 |
3.175 |
10 |
38 |
2 |
|
PCBD0150-450-T |
1.50 |
3.175 |
10 |
38 |
2 |
|
PCBD0155-450-T |
1.55 |
3.175 |
10 |
38 |
2 |
|
PCBD0160-450-T |
1.60 |
3.175 |
10 |
38 |
2 |
|
PCBD0165-450-T |
1.65 |
3.175 |
10 |
38 |
2 |
|
PCBD0170-450-T |
1.70 |
3.175 |
10 |
38 |
2 |
|
PCBD0175-450-T |
1.75 |
3.175 |
10 |
38 |
2 |
|
PCBD0180-450-T |
1.80 |
3.175 |
10 |
38 |
2 |
|
PCBD0185-450-T |
1.85 |
3.175 |
10 |
38 |
2 |
|
PCBD0190-450-T |
1.90 |
3.175 |
10 |
38 |
2 |
|
PCBD0195-450-T |
1.95 |
3.175 |
10 |
38 |
2 |
|
PCBD0200-450-T |
2.00 |
3.175 |
12 |
38 |
2 |
|
PCBD0205-450-T |
2.05 |
3.175 |
12 |
38 |
2 |
|
PCBD0210-450-T |
2.10 |
3.175 |
12 |
38 |
2 |
|
PCBD0215-450-T |
2.15 |
3.175 |
12 |
38 |
2 |
|
PCBD0220-450-T |
2.20 |
3.175 |
12 |
38 |
2 |
|
PCBD3175-450-T |
3.175 |
3.175 |
12 |
38 |
2 |

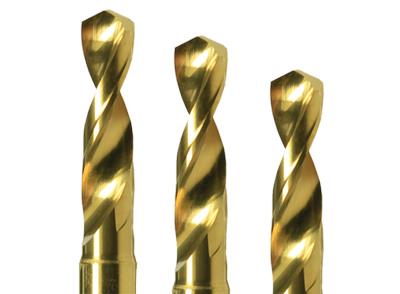

100% Real Shot Photos:
