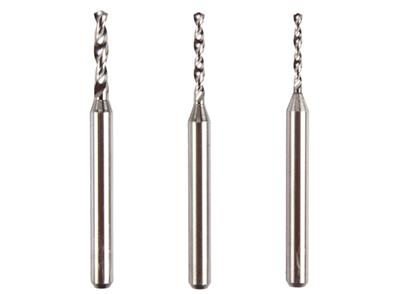

Product Name: 3.175mm Shank Uncoated Tungsten Carbide PCB Drill Bits
Model Number: PCBD-450
Product Parameters:
1. Brand name: Tantivy, or OEM
2. Raw material: 10X from ZCCT Carbide
3. Grain Size: Micro grain 0.6μ
4. Type: PCB drill bits, PCB drilling tools
5. Flute: 2 Flute
6. Helix angle: 30°
7. Diameter: 0.20-3.175
8. Overall Length: 38mm
9. Coating/Coverage: Uncoated
10. Overall Length Tolerance: +-0.20mm
11. HRC: for 45HRC work material
12. Controlling mode: CNC, Drilling Machines
13. Work material: PCB board
Main Features:
Made of high hardness raw carbide material, high durable and strength, very high cost-performance. Special for PCB board drilling, small diameters, also it can reduce the times of tool changes and shaking in the processing, save production time and improve efficiency.
Specifications:
|
Part Number |
Dia/mm |
Shank/mm |
Flute Length/mm |
Overall Length/mm |
Flute |
|
PCBD0020-450 |
0.2 |
3.175 |
4 |
38 |
2 |
|
PCBD0025-450 |
0.25 |
3.175 |
4 |
38 |
2 |
|
PCBD0030-450 |
0.3 |
3.175 |
5.5 |
38 |
2 |
|
PCBD0035-450 |
0.35 |
3.175 |
5.5 |
38 |
2 |
|
PCBD0040-450 |
0.4 |
3.175 |
7 |
38 |
2 |
|
PCBD0045-450 |
0.45 |
3.175 |
7 |
38 |
2 |
|
PCBD0050-450 |
0.5 |
3.175 |
8.5 |
38 |
2 |
|
PCBD0055-450 |
0.55 |
3.175 |
8.5 |
38 |
2 |
|
PCBD0060-450 |
0.6 |
3.175 |
8.5 |
38 |
2 |
|
PCBD0065-450 |
0.65 |
3.175 |
8.5 |
38 |
2 |
|
PCBD0070-450 |
0.70 |
3.175 |
9 |
38 |
2 |
|
PCBD0075-450 |
0.75 |
3.175 |
9 |
38 |
2 |
|
PCBD0080-450 |
0.80 |
3.175 |
10 |
38 |
2 |
|
PCBD0085-450 |
0.85 |
3.175 |
10 |
38 |
2 |
|
PCBD0090-450 |
0.90 |
3.175 |
10 |
38 |
2 |
|
PCBD0095-450 |
0.95 |
3.175 |
10 |
38 |
2 |
|
PCBD0100-450 |
1.00 |
3.175 |
10 |
38 |
2 |
|
PCBD0105-450 |
1.05 |
3.175 |
10 |
38 |
2 |
|
PCBD0110-450 |
1.10 |
3.175 |
10 |
38 |
2 |
|
PCBD0115-450 |
1.15 |
3.175 |
10 |
38 |
2 |
|
PCBD0120-450 |
1.20 |
3.175 |
10 |
38 |
2 |
|
PCBD0125-450 |
1.25 |
3.175 |
10 |
38 |
2 |
|
PCBD0130-450 |
1.30 |
3.175 |
10 |
38 |
2 |
|
PCBD0135-450 |
1.35 |
3.175 |
10 |
38 |
2 |
|
PCBD0140-450 |
1.40 |
3.175 |
10 |
38 |
2 |
|
PCBD0145-450 |
1.45 |
3.175 |
10 |
38 |
2 |
|
PCBD0150-450 |
1.50 |
3.175 |
10 |
38 |
2 |
|
PCBD0155-450 |
1.55 |
3.175 |
10 |
38 |
2 |
|
PCBD0160-450 |
1.60 |
3.175 |
10 |
38 |
2 |
|
PCBD0165-450 |
1.65 |
3.175 |
10 |
38 |
2 |
|
PCBD0170-450 |
1.70 |
3.175 |
10 |
38 |
2 |
|
PCBD0175-450 |
1.75 |
3.175 |
10 |
38 |
2 |
|
PCBD0180-450 |
1.80 |
3.175 |
10 |
38 |
2 |
|
PCBD0185-450 |
1.85 |
3.175 |
10 |
38 |
2 |
|
PCBD0190-450 |
1.90 |
3.175 |
10 |
38 |
2 |
|
PCBD0195-450 |
1.95 |
3.175 |
10 |
38 |
2 |
|
PCBD0200-450 |
2.00 |
3.175 |
12 |
38 |
2 |
|
PCBD0205-450 |
2.05 |
3.175 |
12 |
38 |
2 |
|
PCBD0210-450 |
2.10 |
3.175 |
12 |
38 |
2 |
|
PCBD0215-450 |
2.15 |
3.175 |
12 |
38 |
2 |
|
PCBD0220-450 |
2.20 |
3.175 |
12 |
38 |
2 |
|
PCBD3175-450 |
3.175 |
3.175 |
12 |
38 |
2 |
