Product Name: ER Collet Sets
Model Number: ER8/11/16/25/32/40-P0.015/0.008
Product Parameters:
1. Brand name: Tantivy, or OEM
2. Raw material: 65Mn, 40Cr, Elastic steel
3. Type: Collet set, Clamping collet, ER collet set
4. Hardness: HRC44-48
5. Precision/Accuracy: <0.015mm/0.008mm
6. Size: All sizes in one set
7. Standard: DIN6499B
8. Holder/Adapter: BT, NT and ISO ER collet chuck
9. Specifications: Metric and Imperial
10. Controlling mode: CNC, Milling Machines
11. Usage: Milling, Drilling, Boring, Tapping
Main Features:
Made of elastic steel raw material, high strength clamping ability to make the processing more stable. ER8/ER11/ER16/ER20/ER25/ER32/ER40 with metric sizes and imperial sizes as a set, suitable for BT30/BT40/BT50, NT30/40/50 and ISO ER milling chucks. Common precision <0.015mm also high precision <0.008mm, high cost-performance.
Specifications:
|
Part Number |
Clamping Range/mm |
D |
d1 |
d2 |
L |
l1 |
l2 |
l3 |
|
ER8-5pcs |
1.0-5.0 |
8.5 |
8 |
6.5 |
13.5 |
10.8 |
2.98 |
1.5 |
|
ER11-7pcs |
1.0-7.0 |
11.5 |
11 |
9.5 |
18.0 |
13.5 |
3.80 |
2.5 |
|
ER16-10pcs |
1.0-10.0 |
17.0 |
16 |
13.8 |
27.5 |
20.6 |
6.26 |
4.0 |
|
ER20-13pcs |
1.0-13.0 |
21.0 |
20 |
17.4 |
31.5 |
23.9 |
6.36 |
4.8 |
|
ER25-16pcs |
1.0-16.0 |
26.0 |
25 |
22.0 |
34.0 |
25.9 |
6.66 |
5.0 |
|
ER32-19pcs |
2.0-20.0 |
33.0 |
32 |
29.2 |
40.0 |
30.9 |
7.16 |
5.5 |
|
ER40-23pcs |
3.0-26.0 |
41.0 |
40 |
36.2 |
46.0 |
34.9 |
7.66 |
7.0 |

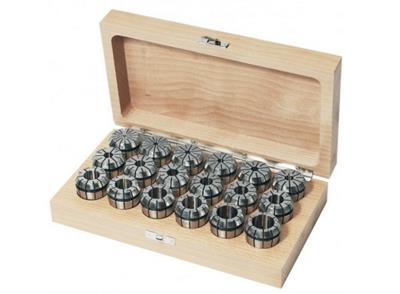

100% Real Shot Photos:
FAQ
We are based in Guangdong, China, start from 2016,sell to Southeast Asia(25.00%),North America(20.00%),Western Europe(15.00%),Oceania(10.00%),South America(10.00%),Mid East(10.00%),Eastern Europe(5.00%),Africa(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Diamond end mill,pcd woodworking tools,pcd pcnd mcd end mill,pcd pcbn mcd inserts,carbide tools
4. why should you buy from us not from other suppliers?
Qiye Diamond Tools Co., Ltd. is an enterprise integrating R & D, production and sales. It is a professional manufacturer of precision diamond tools and tools.We can produce according to your drawings, so welcome OEM!
5. what services can we provide?
Accepted Delivery Terms: FOB;
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Russian
