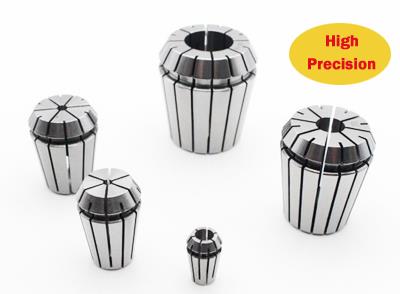

Product Name: High Precision 0.008mm ER Clamping Collets
Model Number: ER8/11/16/25/32/40-P0.008
Product Parameters:
1. Brand name: Tantivy, or OEM
2. Raw material: 65Mn, 40Cr, Elastic steel
3. Type: Collet, Clamping collet, ER collet
4. Hardness: HRC44-48
5. Precision/Accuracy: <0.008mm
6. Size: ER8-ER40
7. Standard: DIN6499B
8. Holder/Adapter: BT, NT and ISO ER collet chuck
9. Specifications: Metric and Imperial
10. Controlling mode: CNC, Milling Machines
11. Usage: Milling, Drilling, Boring, Tapping
Main Features:
Made of elastic steel raw material, high strength clamping ability to make the processing more stable. ER8/ER11/ER16/ER20/ER25/ER32/ER40 with metric sizes and imperial sizes for choices, suitable for BT30/BT40/BT50, NT30/40/50 and ISO ER milling chucks. High precision <0.008mm, high cost-performance.
Specifications:
|
Part Number |
Clamping Range/mm |
D |
d1 |
d2 |
L |
l1 |
l2 |
l3 |
|
ER8-P0.008 |
1.0-5.0 |
8.5 |
8 |
6.5 |
13.5 |
10.8 |
2.98 |
1.5 |
|
ER11-P0.008 |
1.0-7.0 |
11.5 |
11 |
9.5 |
18.0 |
13.5 |
3.80 |
2.5 |
|
ER16-P0.008 |
1.0-10.0 |
17.0 |
16 |
13.8 |
27.5 |
20.6 |
6.26 |
4.0 |
|
ER20-P0.008 |
1.0-13.0 |
21.0 |
20 |
17.4 |
31.5 |
23.9 |
6.36 |
4.8 |
|
ER25-P0.008 |
1.0-16.0 |
26.0 |
25 |
22.0 |
34.0 |
25.9 |
6.66 |
5.0 |
|
ER32-P0.008 |
2.0-20.0 |
33.0 |
32 |
29.2 |
40.0 |
30.9 |
7.16 |
5.5 |
|
ER40-P0.008 |
3.0-26.0 |
41.0 |
40 |
36.2 |
46.0 |
34.9 |
7.66 |
7.0 |
100% Real Shot Photos:
