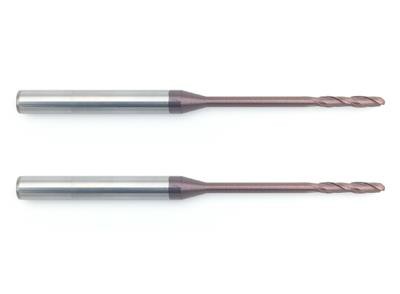

Product Name: 2 Flute Long Neck Ball End Mills for HRC55
Model Number: LNBM-550
Product Parameters:
1. Brand name: Tantivy, or OEM
2. Raw material: Taiwan CB carbide
3. Grain Size: Micro grain 0.6μ
4. Type: Flat end mills, Long neck end mills
5. Flute: 2 Flute
6. Diameter: 0.4mm-4.0mm
7. Overall Length: 50-75mm
8. Coating/Coverage: TiAlN, Nano-C, Nano-B
9. Cobalt: 11%
10. Bending strength: 4000Pa
11. Helix angle: 35°
12. HRC: for upto 55HRC work material
13. Controlling mode: CNC, Milling machines
14. Work material: Copper and Aluminum alloy, Alloy steel, Tool steel, Carbon steel, Cast Iron, Stainless steel
Main Features:
Made of high hardness raw carbide material, high durable and strength. Special long neck design, for deep cutting, with TiAlN coating on the flute, it can cut 55HRC work material after heat treatment, from roughing to finishing. Also it will reduce the times of tool changes and shaking in the processing, save production time and improve efficiency.
Specifications:
|
Part Number |
R |
Shank/mm |
Flute Length/mm |
Effective Length/mm |
Overall Length/mm |
Flute |
|
LNBM0402050-550 |
R0.2 |
4 |
0.6 |
2 |
50 |
2 |
|
LNBM0404050-550 |
R0.2 |
4 |
0.6 |
4 |
50 |
2 |
|
LNBM0502050-550 |
R0.25 |
4 |
0.8 |
2 |
50 |
2 |
|
LNBM0504050-550 |
R0.25 |
4 |
0.8 |
4 |
50 |
2 |
|
LNBM0506050-550 |
R0.25 |
4 |
0.8 |
6 |
50 |
2 |
|
LNBM0602050-550 |
R0.3 |
4 |
1.0 |
2 |
50 |
2 |
|
LNBM0604050-550 |
R0.3 |
4 |
1.0 |
4 |
50 |
2 |
|
LNBM0606050-550 |
R0.3 |
4 |
1.0 |
6 |
50 |
2 |
|
LNBM0608050-550 |
R0.3 |
4 |
1.0 |
8 |
50 |
2 |
|
LNBM0803050-550 |
R0.4 |
4 |
1.2 |
3 |
50 |
2 |
|
LNBM0804050-550 |
R0.4 |
4 |
1.2 |
4 |
50 |
2 |
|
LNBM0806050-550 |
R0.4 |
4 |
1.2 |
6 |
50 |
2 |
|
LNBM0808050-550 |
R0.4 |
4 |
1.2 |
8 |
50 |
2 |
|
LNBM0810050-550 |
R0.4 |
4 |
1.2 |
10 |
50 |
2 |
|
LNBM1004050-550 |
R0.5 |
4 |
1.2 |
4 |
50 |
2 |
|
LNBM1006050-550 |
R0.5 |
4 |
1.2 |
6 |
50 |
2 |
|
LNBM1008050-550 |
R0.5 |
4 |
1.2 |
8 |
50 |
2 |
|
LNBM1010050-550 |
R0.5 |
4 |
1.2 |
10 |
50 |
2 |
|
LNBM1012050-550 |
R0.5 |
4 |
1.2 |
12 |
50 |
2 |
|
LNBM1504050-550 |
R0.75 |
4 |
1.7 |
4 |
50 |
2 |
|
LNBM1506050-550 |
R0.75 |
4 |
1.7 |
6 |
50 |
2 |
|
LNBM1508050-550 |
R0.75 |
4 |
1.7 |
8 |
50 |
2 |
|
LNBM1510050-550 |
R0.75 |
4 |
1.7 |
10 |
50 |
2 |
|
LNBM1512050-550 |
R0.75 |
4 |
1.7 |
12 |
50 |
2 |
|
LNBM2006050-550 |
R1.0 |
4 |
2.2 |
6 |
50 |
2 |
|
LNBM2008050-550 |
R1.0 |
4 |
2.2 |
8 |
50 |
2 |
|
LNBM2010050-550 |
R1.0 |
4 |
2.2 |
10 |
50 |
2 |
|
LNBM2012050-550 |
R1.0 |
4 |
2.2 |
12 |
50 |
2 |
|
LNBM2014050-550 |
R1.0 |
4 |
2.2 |
14 |
50 |
2 |
|
LNBM2016050-550 |
R1.0 |
4 |
2.2 |
16 |
50 |
2 |
|
LNBM3008050-550 |
R1.5 |
4 |
3.2 |
8 |
50 |
2 |
|
LNBM3010050-550 |
R1.5 |
4 |
3.2 |
10 |
50 |
2 |
|
LNBM3012050-550 |
R1.5 |
4 |
3.2 |
12 |
50 |
2 |
|
LNBM3014050-550 |
R1.5 |
4 |
3.2 |
14 |
50 |
2 |
|
LNBM3016075-550 |
R1.5 |
4 |
3.2 |
16 |
75 |
2 |
|
LNBM3020075-550 |
R1.5 |
6 |
3.2 |
20 |
75 |
2 |
|
LNBM4012075-550 |
R2.0 |
6 |
4.2 |
12 |
75 |
2 |
|
LNBM4014075-550 |
R2.0 |
6 |
4.2 |
14 |
75 |
2 |
|
LNBM4016075-550 |
R2.0 |
6 |
4.2 |
16 |
75 |
2 |
|
LNBM4020075-550 |
R2.0 |
6 |
4.2 |
20 |
75 |
2 |
|
LNBM4025075-550 |
R2.0 |
6 |
4.2 |
25 |
75 |
2 |
