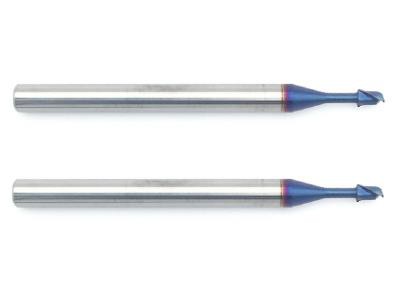

Product Name: Long Reach Reduced Neck Square End Mills
Model Number: LNM
Product Parameters:
1. Brand name: Tantivy, or OEM
2. Raw material: Solid carbide
3. Grain Size: Micro grain 0.6μ
4. Type: Long reach reduced neck square end mills
5. Flute: 2/4 Flute
6. Diameter: 0.4mm-4.0mm
7. Overall Length: 50-75mm
8. Coating/Coverage: TiAlN, Nano-C, Nano-B
9. HRC: for 55-65HRC work materials
10. Controlling mode: CNC, Milling machines
11. Work material: Copper and Aluminum alloy, Alloy steel, Tool steel, Carbon steel, Cast Iron, Stainless steel
Main Features:
Long neck end mills with long reach and reduced neck design, specially for deep-groove processing, numbers of flute are 2 and 4 flute, we stock for the effective lengths with 2/4/6/8/10/12/14/16/20mm, diameter from 0.4mm to 4mm, also special sizes can be customized. This series is created for 55-65HRC work material, with our different kinds of coatings like TiSiN, Nano-Copper, Nano-blue, the tools can last longer life.
Specifications:
|
Part Number |
Dia/mm |
Shank/mm |
Flute Length/mm |
Effective Length/mm |
Overall Length/mm |
Flute |
|
LNM0402050-550 |
0.4 |
4 |
0.6 |
2 |
50 |
2 |
|
LNM0404050-550 |
0.4 |
4 |
0.6 |
4 |
50 |
2 |
|
LNM0502050-550 |
0.5 |
4 |
0.8 |
2 |
50 |
2 |
|
LNM0504050-550 |
0.5 |
4 |
0.8 |
4 |
50 |
2 |
|
LNM0506050-550 |
0.5 |
4 |
0.8 |
6 |
50 |
2 |
|
LNM0602050-550 |
0.6 |
4 |
1.0 |
2 |
50 |
2 |
|
LNM0604050-550 |
0.6 |
4 |
1.0 |
4 |
50 |
2 |
|
LNM0606050-550 |
0.6 |
4 |
1.0 |
6 |
50 |
2 |
|
LNM0608050-550 |
0.6 |
4 |
1.0 |
8 |
50 |
2 |
|
LNM0803050-550 |
0.8 |
4 |
1.2 |
3 |
50 |
2 |
|
LNM0804050-550 |
0.8 |
4 |
1.2 |
4 |
50 |
2 |
|
LNM0806050-550 |
0.8 |
4 |
1.2 |
6 |
50 |
2 |
|
LNM0808050-550 |
0.8 |
4 |
1.2 |
8 |
50 |
2 |
|
LNM0810050-550 |
0.8 |
4 |
1.2 |
10 |
50 |
2 |
|
LNM1004050-550 |
1.0 |
4 |
1.2 |
4 |
50 |
2 |
|
LNM1006050-550 |
1.0 |
4 |
1.2 |
6 |
50 |
2 |
|
LNM1008050-550 |
1.0 |
4 |
1.2 |
8 |
50 |
2 |
|
LNM1010050-550 |
1.0 |
4 |
1.2 |
10 |
50 |
2 |
|
LNM1012050-550 |
1.0 |
4 |
1.2 |
12 |
50 |
2 |
|
LNM1504050-550 |
1.5 |
4 |
1.7 |
4 |
50 |
2 |
|
LNM1506050-550 |
1.5 |
4 |
1.7 |
6 |
50 |
2 |
|
LNM1508050-550 |
1.5 |
4 |
1.7 |
8 |
50 |
2 |
|
LNM1510050-550 |
1.5 |
4 |
1.7 |
10 |
50 |
2 |
|
LNM1512050-550 |
1.5 |
4 |
1.7 |
12 |
50 |
2 |
|
LNM2006050-550 |
2.0 |
4 |
2.2 |
6 |
50 |
2 |
|
LNM2008050-550 |
2.0 |
4 |
2.2 |
8 |
50 |
2 |
|
LNM2010050-550 |
2.0 |
4 |
2.2 |
10 |
50 |
2 |
|
LNM2012050-550 |
2.0 |
4 |
2.2 |
12 |
50 |
2 |
|
LNM2014050-550 |
2.0 |
4 |
2.2 |
14 |
50 |
2 |
|
LNM2016050-550 |
2.0 |
4 |
2.2 |
16 |
50 |
2 |
|
LNM3008050-550 |
3.0 |
4 |
3.2 |
8 |
50 |
2 |
|
LNM3010050-550 |
3.0 |
4 |
3.2 |
10 |
50 |
2 |
|
LNM3012050-550 |
3.0 |
4 |
3.2 |
12 |
50 |
2 |
|
LNM3014050-550 |
3.0 |
4 |
3.2 |
14 |
50 |
2 |
|
LNM3016075-550 |
3.0 |
4 |
3.2 |
16 |
75 |
2 |
|
LNM3020075-550 |
3.0 |
6 |
3.2 |
20 |
75 |
2 |
|
LNM4012075-550 |
4.0 |
6 |
4.2 |
12 |
75 |
2 |
|
LNM4014075-550 |
4.0 |
6 |
4.2 |
14 |
75 |
2 |
|
LNM4016075-550 |
4.0 |
6 |
4.2 |
16 |
75 |
2 |
|
LNM4020075-550 |
4.0 |
6 |
4.2 |
20 |
75 |
2 |
|
LNM4025075-550 |
4.0 |
6 |
4.2 |
25 |
75 |
2 |
