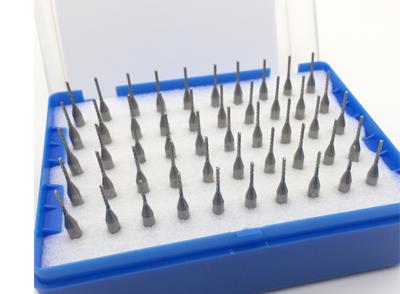

Product Name: Uncoated Solid Carbide PCB End Milling Tools
Model Number: PCBM-450-U
Product Parameters:
1. Brand name: Tantivy, or OEM
2. Raw material: Original tungsten carbide
3. Grain Size: Micro grain 0.6μ
4. Type: PCB end mill, PCB milling cutters, Corn end mill
5. Flute: 2 Flute
6. Teeth: Waved teeth
7. Diameter: 0.6mm-3.175mm
8. Overall Length: 38mm
9. Coating/Coverage: Uncoated
10. Helix: 35 degree
11. HRC: for 45HRC work material
12. Controlling mode: CNC, Milling Machines
13. Work material: PCB board
Main Features:
Made of high hardness raw carbide material, high durable and strength. Special for PCB board milling, high efficiency with waved flute, uncoated to avoid sticky processing. Also it can reduce the times of tool changes and shaking in the processing, save production time and improve efficiency.
Specifications:
|
Part Number |
Dia/mm |
Shank/mm |
Flute Length/mm |
Overall Length/mm |
Flute |
|
PCBM006-450-U |
0.6 |
3.175 |
3 |
38 |
2 |
|
PCBM007-450-U |
0.7 |
3.175 |
4 |
38 |
2 |
|
PCBM008-450-U |
0.8 |
3.175 |
5 |
38 |
2 |
|
PCBM009-450-U |
0.9 |
3.175 |
6 |
38 |
2 |
|
PCBM010-450-U |
1.0 |
3.175 |
7 |
38 |
2 |
|
PCBM011-450-U |
1.1 |
3.175 |
7 |
38 |
2 |
|
PCBM012-450-U |
1.2 |
3.175 |
7 |
38 |
2 |
|
PCBM013-450-U |
1.3 |
3.175 |
7.5 |
38 |
2 |
|
PCBM014-450-U |
1.4 |
3.175 |
7.5 |
38 |
2 |
|
PCBM015-450-U |
1.5 |
3.175 |
8.5 |
38 |
2 |
|
PCBM016-450-U |
1.6 |
3.175 |
8.5 |
38 |
2 |
|
PCBM017-450-U |
1.7 |
3.175 |
9.5 |
38 |
2 |
|
PCBM018-450-U |
1.8 |
3.175 |
9.5 |
38 |
2 |
|
PCBM019-450-U |
1.9 |
3.175 |
9.5 |
38 |
2 |
|
PCBM020-450-U |
2.0 |
3.175 |
9.5 |
38 |
2 |
|
PCBM024-450-U |
2.4 |
3.175 |
10.5 |
38 |
2 |
|
PCBM025-450-U |
2.5 |
3.175 |
10.5 |
38 |
2 |
|
PCBM030-450-U |
3.0 |
3.175 |
12 |
38 |
2 |
|
PCBM1/8-450-U |
3.175 |
3.175 |
12 |
38 |
2 |
