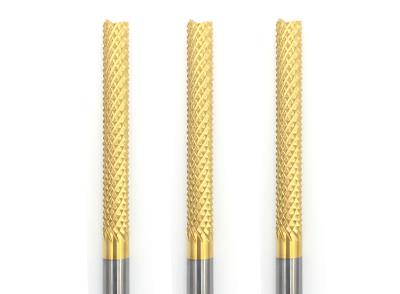

Product Name: TiN Coated Tungsten Carbide PCB End Milling Cutters
Model Number: PCBM-450
Product Parameters:
1. Brand name: Tantivy, or OEM
2. Raw material: Original tungsten carbide
3. Grain Size: Micro grain 0.6μ
4. Type: PCB end mill, PCB milling cutters, Corn end mill
5. Flute: 2 Flute
6. Teeth: Waved teeth
7. Diameter: 0.6mm-3.175mm
8. Overall Length: 38mm
9. Coating/Coverage: TiN coated
10. Helix: 35 degree
11. HRC: for 45HRC work material
12. Controlling mode: CNC, Milling Machines
13. Work material: PCB board
Main Features:
Made of high hardness raw carbide material, high durable and strength. Special for PCB board milling, high efficiency with waved flute, with Tin coating, the cutters will have longer life. Also it can reduce the times of tool changes and shaking in the processing, save production time and improve efficiency.
Specifications:
|
Part Number |
Dia/mm |
Shank/mm |
Flute Length/mm |
Overall Length/mm |
Flute |
|
PCBM006-450 |
0.6 |
3.175 |
3 |
38 |
2 |
|
PCBM007-450 |
0.7 |
3.175 |
4 |
38 |
2 |
|
PCBM008-450 |
0.8 |
3.175 |
5 |
38 |
2 |
|
PCBM009-450 |
0.9 |
3.175 |
6 |
38 |
2 |
|
PCBM010-450 |
1.0 |
3.175 |
7 |
38 |
2 |
|
PCBM011-450 |
1.1 |
3.175 |
7 |
38 |
2 |
|
PCBM012-450 |
1.2 |
3.175 |
7 |
38 |
2 |
|
PCBM013-450 |
1.3 |
3.175 |
7.5 |
38 |
2 |
|
PCBM014-450 |
1.4 |
3.175 |
7.5 |
38 |
2 |
|
PCBM015-450 |
1.5 |
3.175 |
8.5 |
38 |
2 |
|
PCBM016-450 |
1.6 |
3.175 |
8.5 |
38 |
2 |
|
PCBM017-450 |
1.7 |
3.175 |
9.5 |
38 |
2 |
|
PCBM018-450 |
1.8 |
3.175 |
9.5 |
38 |
2 |
|
PCBM019-450 |
1.9 |
3.175 |
9.5 |
38 |
2 |
|
PCBM020-450 |
2.0 |
3.175 |
9.5 |
38 |
2 |
|
PCBM024-450 |
2.4 |
3.175 |
10.5 |
38 |
2 |
|
PCBM025-450 |
2.5 |
3.175 |
10.5 |
38 |
2 |
|
PCBM030-450 |
3.0 |
3.175 |
12 |
38 |
2 |
|
PCBM1/8-450 |
3.175 |
3.175 |
12 |
38 |
2 |
FAQ
We are based in Guangdong, China, start from 2016,sell to Southeast Asia(25.00%),North America(20.00%),Western Europe(15.00%),Oceania(10.00%),South America(10.00%),Mid East(10.00%),Eastern Europe(5.00%),Africa(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Diamond end mill,pcd woodworking tools,pcd pcnd mcd end mill,pcd pcbn mcd inserts,carbide tools
4. why should you buy from us not from other suppliers?
Qiye Diamond Tools Co., Ltd. is an enterprise integrating R & D, production and sales. It is a professional manufacturer of precision diamond tools and tools.We can produce according to your drawings, so welcome OEM!
5. what services can we provide?
Accepted Delivery Terms: FOB;
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Russian
