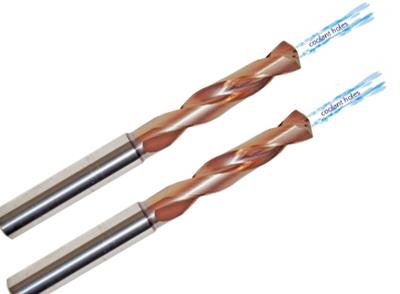

Product Name: TiAlN Coated Solid Carbide Drills with Through Coolant
Model Number: CSD-550/600
Product Parameters:
1. Brand name: Tantivy, or OEM
2. Raw material: Imported tungsten carbide from Guhring in Germany
3. Grain Size: Micro grain 0.6μ
4. Type: Twisted drill bits, Coolant drills, 3xD
5. Flute: 2 Flute
6. Tip angle: 140°
7. Diameter: 3.0-20.0mm
8. Overall Length: 60-160mm
9. Coating/Coverage: TiAlN coated
10. Bending Strength: 4300Pa
11. HRC: for 55-60HRC work material
12. Controlling mode: CNC, Drilling machines
13. Work material: Cast iron, Steel, Alloy, Mould steel, Stainless steel
Main Features:
Made of high hardness raw carbide material, high durable and strength, with coolant hole. Suitable for different metals drilling such as copper, steel, cast iron, stainless etc, also it can reduce the times of tool changes and shaking in the processing, save production time and improve efficiency.
Specifications:
|
Part Number |
Dia/mm |
Shank/mm |
Drilling Length/mm |
Overall Length/mm |
Flute |
|
CSD06030062-550/600 |
3.0 |
6 |
14 |
62 |
2 |
|
CSD06033062-550/600 |
3.3 |
6 |
14 |
62 |
2 |
|
CSD06037062-550/600 |
3.7 |
6 |
14 |
62 |
2 |
|
CSD06038066-550/600 |
3.8 |
6 |
17 |
66 |
2 |
|
CSD06040066-550/600 |
4.0 |
6 |
17 |
66 |
2 |
|
CSD06042066-550/600 |
4.2 |
6 |
17 |
66 |
2 |
|
CSD06047066-550/600 |
4.7 |
6 |
17 |
66 |
2 |
|
CSD06050066-550/600 |
5.0 |
6 |
20 |
66 |
2 |
|
CSD06056066-550/600 |
5.6 |
6 |
20 |
66 |
2 |
|
CSD06057066-550/600 |
5.7 |
6 |
20 |
66 |
2 |
|
CSD06060066-550/600 |
6.0 |
6 |
20 |
66 |
2 |
|
CSD08068079-550/600 |
6.8 |
8 |
24 |
79 |
2 |
|
CSD08070079-550/600 |
7.0 |
8 |
24 |
79 |
2 |
|
CSD08075079-550/600 |
7.5 |
8 |
29 |
79 |
2 |
|
CSD08077079-550/600 |
7.7 |
8 |
29 |
79 |
2 |
|
CSD08080079-550/600 |
8.0 |
8 |
29 |
79 |
2 |
|
CSD10085089-550/600 |
8.5 |
10 |
35 |
89 |
2 |
|
CSD10090089-550/600 |
9.0 |
10 |
35 |
89 |
2 |
|
CSD10094089-550/600 |
9.4 |
10 |
35 |
89 |
2 |
|
CSD10096089-550/600 |
9.6 |
10 |
35 |
89 |
2 |
|
CSD10100089-550/600 |
10.0 |
10 |
35 |
89 |
2 |
|
CSD12102102-550/600 |
10.2 |
12 |
40 |
102 |
2 |
|
CSD12105102-550/600 |
10.5 |
12 |
40 |
102 |
2 |
|
CSD12110102-550/600 |
11.0 |
12 |
40 |
102 |
2 |
|
CSD12113102-550/600 |
11.3 |
12 |
40 |
102 |
2 |
|
CSD12114102-550/600 |
11.4 |
12 |
40 |
102 |
2 |
|
CSD12116102-550/600 |
11.6 |
12 |
40 |
102 |
2 |
|
CSD12120102-550/600 |
12.0 |
12 |
40 |
102 |
2 |
|
CSD14125107-550/600 |
12.5 |
14 |
43 |
107 |
2 |
|
CSD14128107-550/600 |
12.8 |
14 |
43 |
107 |
2 |
|
CSD14130107-550/600 |
13.0 |
14 |
43 |
107 |
2 |
|
CSD14131107-550/600 |
13.1 |
14 |
43 |
107 |
2 |
|
CSD14134107-550/600 |
13.4 |
14 |
43 |
107 |
2 |
|
CSD14136124-550/600 |
13.6 |
14 |
60 |
124 |
2 |
|
CSD14140124-550/600 |
14.0 |
14 |
60 |
124 |
2 |
|
CSD16145133-550/600 |
14.5 |
16 |
63 |
133 |
2 |
|
CSD16150133-550/600 |
15.0 |
16 |
63 |
133 |
2 |
|
CSD16151133-550/600 |
15.1 |
16 |
63 |
133 |
2 |
|
CSD16154133-550/600 |
15.4 |
16 |
63 |
133 |
2 |
|
CSD16156133-550/600 |
15.6 |
16 |
63 |
133 |
2 |
|
CSD16160133-550/600 |
16.0 |
16 |
63 |
133 |
2 |
|
CSD18165143-550/600 |
16.5 |
18 |
71 |
143 |
2 |
|
CSD18169143-550/600 |
16.9 |
18 |
71 |
143 |
2 |
|
CSD18170143-550/600 |
17.0 |
18 |
71 |
143 |
2 |
|
CSD18171143-550/600 |
17.1 |
18 |
71 |
143 |
2 |
|
CSD18175143-550/600 |
17.5 |
18 |
71 |
143 |
2 |
|
CSD18173143-550/600 |
17.6 |
18 |
71 |
143 |
2 |
|
CSD18180143-550/600 |
18.0 |
18 |
71 |
143 |
2 |
|
CSD20185153-550/600 |
18.5 |
20 |
77 |
153 |
2 |
|
CSD20189153-550/600 |
18.9 |
20 |
77 |
153 |
2 |
|
CSD20190153-550/600 |
19.0 |
20 |
77 |
153 |
2 |
|
CSD20200153-550/600 |
20.0 |
20 |
77 |
153 |
2 |
100% Real Shot Photos:
